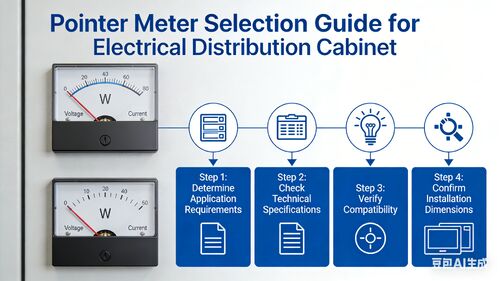

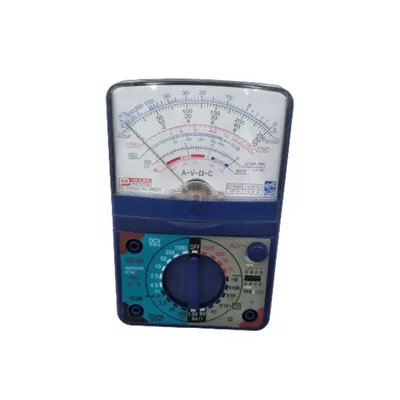

Selection Guide for Pointer Instruments Pointer instruments are widely used in industrial control, laboratory testing, and daily measurement scenarios due to their intuitive display, simple structure, and high reliability. Selecting the right pointer instrument is crucial to ensuring measurement accuracy, operational safety, and long-term stability. This guide outlines the core principles, key selection criteria, and practical considerations to help users choose the most suitable pointer instrument for their specific needs. 1. Core Principles of Selection The selection of pointer instruments should follow three core principles: matching measurement requirements, adapting to the application environment, and balancing performance and cost. First, the instrument’s measurement range, accuracy, and resolution must fully meet the actual measurement needs; second, it should be able to work stably in the target environment (such as temperature, humidity, vibration, and corrosion); finally, on the premise of meeting performance indicators, select products with high cost-effectiveness to avoid unnecessary waste. 2. Key Selection Criteria 2.1 Measurement Range The measurement range (full-scale value) of the pointer instrument is the first factor to consider. It should be slightly larger than the maximum value of the measured parameter to avoid overload damage to the instrument, while ensuring that the measured value is within the middle 1/3 to 2/3 of the full scale—this range can maximize measurement accuracy. For example, if the measured pressure range is 0-0.6 MPa, it is appropriate to select an instrument with a full-scale value of 0-1.0 MPa, rather than 0-0.6 MPa (easy to overload) or 0-2.5 MPa (low accuracy for small values). 2.2 Accuracy Class Accuracy class is a key indicator reflecting the measurement error of the instrument, usually expressed as a percentage of the full-scale value (e.g., 0.2, 0.5, 1.0, 1.5, 2.5, 5.0). The higher the accuracy class (the smaller the percentage), the smaller the measurement error. The selection of accuracy class should be based on the required measurement precision: for laboratory testing and high-precision control scenarios, select instruments with accuracy class ≤ 0.5; for general industrial on-site monitoring, 1.0-2.5 class is sufficient; for rough measurement, 5.0 class can meet the needs. It should be noted that higher accuracy usually means higher cost, so it is not necessary to pursue ultra-high accuracy blindly. 2.3 Dial Size and Scale The dial size (diameter) affects the readability of the instrument. Common dial sizes include 40mm, 60mm, 80mm, 100mm, 150mm, etc. For on-site observation at a distance (e.g., workshop equipment monitoring), select a larger dial (≥100mm) to ensure clear reading; for panel-mounted instruments in a small space, a smaller dial (40-80mm) is more appropriate. In addition, the scale division of the dial should be reasonable: the smaller the scale division, the higher the resolution, but it should not be too dense to avoid reading confusion. For example, a pressure gauge with a full scale of 0-1.0 MPa and a scale division of 0.02 MPa is more suitable for precise reading than one with a scale division of 0.05 MPa. 2.4 Working Environment Adaptability The working environment directly affects the service life and measurement stability of pointer instruments. Key environmental factors to consider include: Temperature: Select instruments with a working temperature range matching the on-site environment. For high-temperature environments (above 60℃), choose instruments with high-temperature resistant materials and thermal insulation structures; for low-temperature environments (below -10℃), select instruments with anti-freezing and anti-condensation functions. Humidity: In humid environments (relative humidity > 85%), select instruments with waterproof, moisture-proof, and anti-fog functions (e.g., IP65 protection level or higher) to prevent internal components from rusting or short-circuiting. Vibration: For vibrating scenarios (e.g., near pumps, motors), select instruments with anti-vibration structures (e.g., shockproof springs, damping devices) to avoid pointer jitter and damage to internal mechanisms. Corrosion: In corrosive environments (e.g., chemical plants, coastal areas), select instruments with corrosion-resistant casings (e.g., stainless steel, PTFE) and internal components to prevent corrosion damage. 2.5 Installation Type and Connection Mode Pointer instruments have different installation types to adapt to different application scenarios, including: Panel-mounted: Installed on control panels or instrument cabinets, suitable for centralized monitoring (e.g., power distribution rooms, control rooms). The instrument is fixed with a flange or thread, and the dial is exposed for easy observation. Wall-mounted: Installed on walls, suitable for on-site fixed-point monitoring (e.g., workshop pipelines, storage tanks). It requires a stable installation bracket to ensure the instrument is vertical and not affected by vibration. Portable: Lightweight and easy to carry, suitable for on-site inspection and temporary measurement (e.g., field maintenance, mobile testing). It usually has a handle and a portable case for easy transportation. In addition, the connection mode between the instrument and the measured object should be matched. For example, pressure gauges use threaded connections (e.g., M20×1.5, G1/2), temperature gauges use thermocouple or thermal resistance connections, and ammeters/voltmeters use terminal block connections. Ensure the connection size and type are consistent with the on-site pipeline or circuit. 2.6 Material and Durability The material of the instrument’s casing and internal components determines its durability and service life. Common casing materials include plastic, metal (iron, aluminum, stainless steel), and glass. Plastic casings are lightweight and low-cost, suitable for general environments; metal casings are sturdy and anti-impact, suitable for harsh on-site environments; glass dials should use tempered glass to prevent breakage. Internal components (e.g., springs, gears, pointers) should be made of high-quality materials (e.g., stainless steel, copper alloy) to ensure wear resistance and stability after long-term use. 2.7 Special Functions (If Required) According to specific application needs, some pointer instruments may require special functions, such as: Alarm function: Equipped with upper and lower limit alarm contacts, which can send alarm signals when the measured value exceeds the set range (suitable for safety monitoring scenarios). Recording function: Equipped with a pen recorder to record the change trend of the measured value over time (suitable for process monitoring and data analysis). Anti-overload protection: Equipped with an overload protection device to prevent instrument damage when the measured value exceeds the full scale. 3. Practical Selection Steps Clarify measurement requirements: Determine the measured parameter (e.g., pressure, temperature, current, voltage), measurement range, and required accuracy class based on the actual application scenario. Analyze the working environment: Evaluate the on-site temperature, humidity, vibration, corrosion, and other environmental factors to determine the required protection level and material requirements. Select installation type and connection mode: Choose panel-mounted, wall-mounted, or portable installation according to the installation space and use scenario, and confirm the connection size and type. Screen candidates: Based on the above criteria, screen instruments that meet the requirements, and compare their performance, cost, and after-sales service. Verify compatibility: Confirm that the selected instrument is compatible with the on-site equipment, pipelines, or circuits, and that the installation and use conditions are met. Consider after-sales service: Select manufacturers with reliable quality and perfect after-sales service to ensure timely maintenance and calibration of the instrument during use. 4. Common Mistakes to Avoid Blindly pursuing high accuracy: Selecting an ultra-high accuracy instrument when the actual measurement does not require it, resulting in unnecessary cost increases. Ignoring environmental adaptability: Using ordinary instruments in harsh environments (e.g., high temperature, high humidity, corrosion) leads to shortened service life and inaccurate measurement. Mismatched measurement range: Selecting a full-scale value that is too small (easy to overload) or too large (low accuracy). Neglecting installation and connection: The installation type or connection mode does not match the on-site scenario, leading to difficulty in installation or unstable operation. 5. Conclusion The selection of pointer instruments is a comprehensive process that requires combining measurement requirements, environmental conditions, installation scenarios, and cost factors. By following the principles and criteria outlined in this guide, users can select the most suitable pointer instrument, ensuring accurate measurement, stable operation, and long-term reliability. Before finalizing the selection, it is recommended to consult the instrument manufacturer for detailed product parameters and technical support to avoid selection errors.

An ammeter, commonly spelled as ampere meter, is an electrical measuring instrument used to measure the current flowing through a circuit. The name derives from "ampere," the unit of electric current.   Types of Ammeters: Analog Ammeters: Traditional devices with a moving needle and scale. Common types include moving coil (for DC), moving iron (for AC/DC), and electrodynamic designs. Digital Ammeters: Modern instruments with digital displays offering higher accuracy and additional features like data holding and peak measurement. How It Works: Ammeters must be connected in series with the circuit to measure current flow. Since they have very low internal resistance, they don't significantly affect the circuit's operation. For high current measurements, current transformers (CTs) or shunts are used to step down the current to safe levels. Applications: Ammeters are essential in power distribution panels, industrial machinery, battery monitoring, automotive diagnostics, and laboratory testing to monitor current consumption, detect overloads, and ensure proper equipment operation.

A digital panel meter is an electronic instrument that displays physical measurements in precise numerical form on a digital screen, typically using LED or LCD technology. Unlike traditional analog meters with moving needles and scales, digital panel meters offer superior accuracy, readability, and reliability. These devices are designed for flush mounting into control panels, machinery, and equipment enclosures. They measure and display various electrical parameters including: Voltage (AC/DC) Current (AC/DC) Temperature (via thermocouples or RTDs) Frequency Resistance Process signals (4-20 mA, 0-10 V) Key advantages of digital panel meters include high accuracy with minimal parallax error, easy readability from distance, data logging capabilities, and optional communication interfaces for remote monitoring. They are widely used in industrial automation, power distribution systems, testing equipment, and process control applications where precise measurement and reliable performance are essential.

A multi function meter is an advanced digital instrument designed to measure and display multiple electrical parameters simultaneously. Unlike traditional single-purpose meters that only measure voltage or current, these versatile devices provide comprehensive power system analysis. Typically installed in switchboards, control panels, and industrial automation systems, a multi function meter monitors key electrical values including: Voltage (AC/DC) Current Active, reactive, and apparent power Power factor Frequency Energy consumption (kWh) Harmonic distortion Modern multi function meters feature digital displays, communication protocols (Modbus, RS485), and data logging capabilities for remote monitoring and energy management. They are essential tools for facility managers, engineers, and plant operators seeking to optimize power usage, improve system reliability, and conduct detailed power quality analysis across commercial buildings, industrial facilities, and utility substations.
