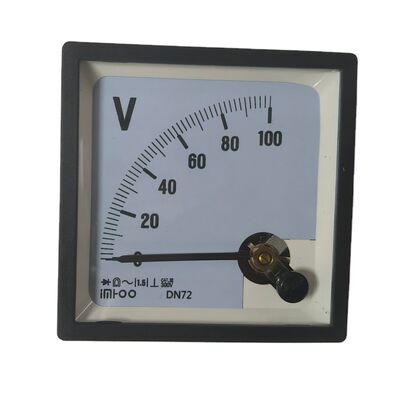

DN72 Analog Voltmeter AC 100V 0-100V Panel Mount Pointer Voltage Meter

Brand Name:	IMHOO
Model Number:	DC100V
MOQ:	2 pieces
Price:	$2.90-6 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Accuracy Class:

Measure Parameters:

Voltage

Measuring Voltage Range:

0-100V

Application:

Industrial, Testing Power, Households, Electric Power

Dimensions:

72*72 Mm

Display Type:

Analog Only

Operating Temperature:

-20'℃ - 50℃

Phase:

Single Phase

Case Material:

ABS

Base Material:

PPO

HS Code:

9030339000

QTY/CTN:

100pcs/CTN

G.W.:

17KG

N.W.:

15KG

Highlight:

DN72 Analog Voltmeter

100V Analog Voltmeter

Single Phase analog ac voltmeter

Product Description

Analog Voltmeter DN72 AC100V 0-100V Panel Mount Pointer Voltage Meter

This Analog Voltmeter (Model DN72) is a panel-mounted measuring instrument designed to provide accurate and real-time voltage readings in electrical systems. It features a 0-100V measuring range, making it suitable for monitoring low-voltage circuits and ensuring safe operation of electrical equipment. The mechanical pointer display allows users to intuitively observe voltage fluctuations, which is especially useful in environments where quick response and visual confirmation are essential.

The voltmeter complies with Class 1.5 accuracy standards, ensuring stable and precise measurements. Built with a 72 × 72 mm square ABS housing and a transparent glass cover, the instrument is both durable and resistant to mechanical vibration, making it reliable for long-term use in industrial and laboratory environments. Its panel mount design allows for easy installation in distribution cabinets, control panels, generators, testing equipment, and educational setups.

Key Features & Benefits

Clear Visualization: Large dial with sharp graduation marks for easy reading
Accurate Measurement: Class 1.5 accuracy ensures dependable performance
Compact Design: Space-saving square panel size (DN72), ideal for embedded installations
Rugged Construction: ABS enclosure and glass cover provide durability in industrial environments
Versatile Applications: Suitable for power monitoring, equipment testing, industrial control, and teaching demonstrations

Technical Specifications

Product Type	Analog Voltmeter (Pointer Type)
Model	DN72
Measuring Range	0 - 100V (customizable on request)
Accuracy Class	1.5
Panel Size	72 × 72 mm
Display Type	Analog pointer with mechanical scale
Input Type	Direct voltage measurement (AC/DC)
Mounting Type	Embedded panel mounting
Housing Material	ABS + Transparent glass
Operating Temperature	-10℃ to +50℃
Storage Temperature	-20℃ to +60℃
Standards Compliance	CAT III 300V safety standard

Applications

Power Systems - Voltage monitoring in distribution panels and control cabinets to ensure safe operation.
Industrial Control - Installed on machinery and industrial instruments for real-time voltage display.
Laboratories & Education - Ideal for testing, experiments, and training demonstrations.
Maintenance & Debugging - Used during equipment installation, servicing, and troubleshooting to verify voltage levels.

Installation & Usage Precautions

Operate Within Rated Range: Ensure the input voltage does not exceed the rated measuring range to prevent damage
Correct Wiring: Verify polarity before wiring to avoid abnormal pointer deflection
Avoid Vibration & Impact: The meter is a precision instrument and should be protected from strong shocks
Regular Calibration: Periodic calibration is recommended to maintain accuracy
Proper Installation Environment: Keep away from high temperature, humidity, and strong magnetic fields to ensure stable readings

Frequently Asked Questions

Q: Can you accept OEM manufacturing?

A: Yes. We can make molds for meters' housing and do customized technology according to your request. We also can make your brand and design of the package (inner box, blister, master carton...)

Q: Where can I put my logo?

A: We can print your logo in the meters' dial, meters' housing, blister card, inner box and master carton.

Q: What are your MOQ?

A: Analog display meters MOQ: 100pcs. Digital display meters MOQ: 1000pcs.

Q: How can I get Samples?

A: If the samples cost below $10.00 are for free, but we need the customer pay the freight cost.

Q: What are your terms of payment?

A: 1) T/T (30% in advance, the balance should be paid before shipment). 2) For small order less than USD 5000, in order to saving the bank transfer for both of us, we need 100% in advance.

Q: How long is the delivery time?

A: For the MOQ, the leading time is about 15 days.
