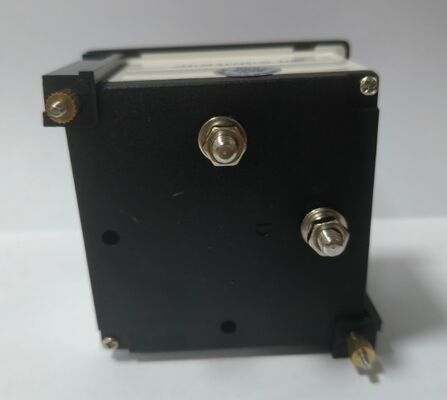

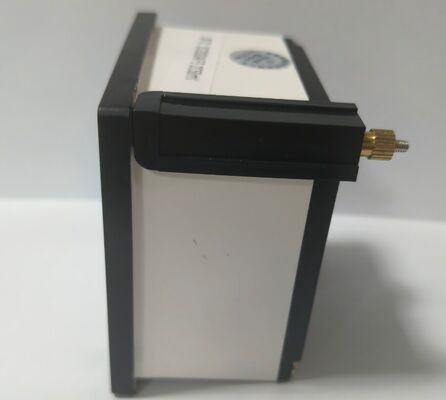

2000A DC Analog Panel Ammeter DN72 Panel Mount Current Meter

Brand Name:	Imhoo
Model Number:	DN-72
MOQ:	2 pieces
Price:	$2.90-6 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Accuracy Class:

2.5

Digits Displayed:

0-2000A

Display Type:

Analog Only

Input Voltage:

±0.1999 V

Supply Voltage:

220/110V

Dimensions:

72x72mm

Operating Temperature:

-20~+50

Case Material:

ABS

Base Material:

PPO

HS Code:

9030339000

Outer Carton Size:

41x35x35cm

QTY/CTN:

100pcs/CTN

G.W.:

17KG

N.W.:

15KG

Highlight:

2000A analog panel ammeter

DN72 analog panel ammeter

110V analog dc voltmeter panel mount

Product Description

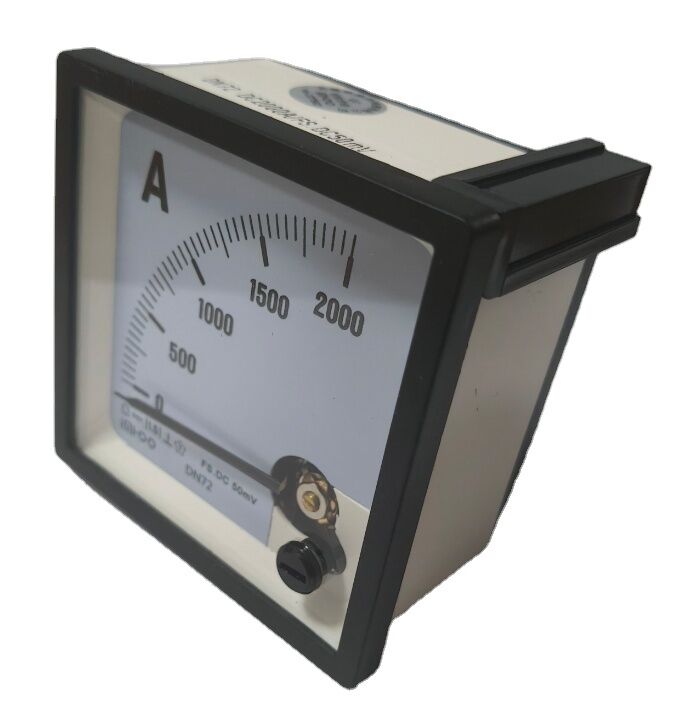

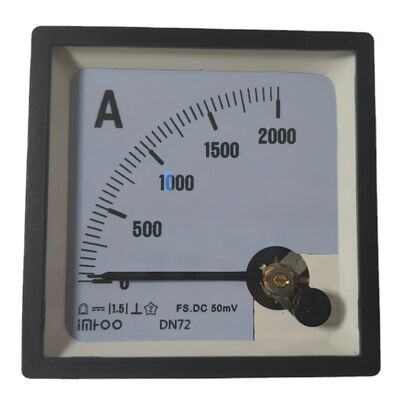

2000A DC Analog Panel Meter DN72 Panel Mount Current Meter

The DC Ammeter (2000A / 50mV, Model DN72) is a reliable analog panel meter designed for precise measurement of high DC currents. It operates with an external 50mV shunt to provide accurate readings up to 2000A DC. Featuring a standard 72×72mm panel size, this ammeter offers easy installation and is widely utilized in battery banks, UPS systems, electroplating applications, motor drives, and industrial control panels.

With a clear analog dial display, ±1.5% accuracy rating, and durable flame-retardant housing, this ammeter ensures long service life even in demanding industrial environments. The instrument is fully compliant with IEC 60051 and GB/T standards, making it a trusted choice for power monitoring and industrial applications.

Product Specifications

Product Name	DC Ammeter (Analog Panel Meter)
Model	DN72
Measuring Range	0 - 2000A DC
Input Signal	50mV DC (via external shunt)
Accuracy Class	±1.5%
Display Type	Analog needle pointer
Panel Size	72 × 72 mm (DN72 standard)
Installation	Panel Mount (flush mounting)
Scale Markings	Clear black scale, white background
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Relative Humidity	≤ 85% RH (non-condensing)
Housing Material	Flame-retardant ABS plastic
Window Material	Transparent acrylic
Weight	Approx. 180g - 250g
Compliance	IEC 60051 / GB/T standard

Important Notes: Requires a matching 2000A / 50mV shunt to operate. Suitable for battery banks, UPS systems, DC power systems, electroplating applications, and industrial control panels. Customization available for different ranges and panel sizes upon request.

Frequently Asked Questions

Q: Can you accept OEM manufacturing?

A: Yes. We can create molds for meter housings and implement customized technology according to your requirements. We can also incorporate your branding and design for packaging (inner box, blister, master carton).

Q: Where can I place my logo?

A: We can print your logo on the meter dial, meter housing, blister card, inner box, and master carton.

Q: What are your minimum order quantities?

A: Analog display meters MOQ: 100 pieces. Digital display meters MOQ: 1000 pieces.

Q: How can I obtain samples?

A: Samples costing below $10.00 are free, but customers must pay the freight cost.

Q: What are your payment terms?

A: 1) T/T (30% in advance, balance paid before shipment). 2) For orders less than USD 5000, we require 100% payment in advance to save on bank transfer costs for both parties.

Q: How long is the delivery time?

A: For minimum order quantities, the lead time is approximately 15 days.
