DN96 Pointer Type AC DC Voltmeter 0.4MPa Simulation Voltmeter Marine Voltmeter

Name: DN96 Pointer Type AC DC Voltmeter 0.4MPa Simulation Voltmeter Marine Voltmeter
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: MU-45
Price: 19.00 USD
Availability: InStock

Brand Name:	IMHOO
Model Number:	MU-45
MOQ:	2 pieces
Price:	$18-20 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Accuracy Class:

±(1.5% + 5)

Max. AC Current:

20mA

Max. Ac Voltage:

10V

Max. DC Current:

Max. DC Voltage:

Measuring Range:

0 - 0.4 MPa

Dimensions:

60.7x71mm

Display Type:

Analog Only

Operating Temperature:

-20-50℃

Material:

ABS

Meter Supporter:

Al, Ni,Co

Moving Coil:

Fuji Line

Pointer Material:

Cu/Al

Inner Connection Line:

UL Line

Screw:

Dial:

Al Scale

Soldering:

ROHS Solde Wire

HS Code:

8504902000

Highlight:

DN96 ac dc voltmeter

0.4MPa ac dc voltmeter

Pointer Type marine voltmeter

Product Description

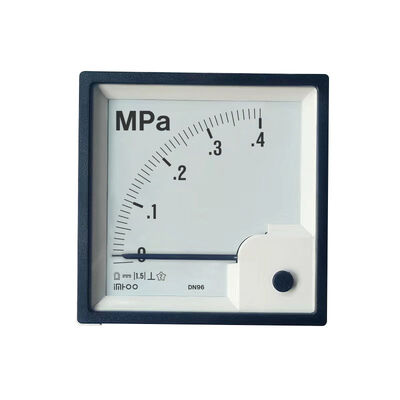

DN96 Pointer Type Analog Panel Meter

High stability pointer type meter designed for pressure measurement applications in marine and power distribution panels.

Key Features & Benefits

Better Stability • Higher Precision

Clear Readability: Large scale markings for easy viewing
Industrial Grade: Suitable for temperatures from -20°C to +50°C
Versatile Application: Ideal for marine dashboards, power distribution cabinets, and process control systems
Robust Construction: Designed for demanding industrial environments

Technical Specifications

Product Name	Pressure Meter / Analog Panel Meter
Model	DN96 (96 Series)
Display Type	Pointer / Needle (Analog)
Scale Range	0 - 0.4 MPa
Dimensions	96mm x 96mm (Front Face)
Product Weight	220g
Ambient Temperature	-20°C ~ +50°C
Relative Humidity	≤ 85%
Application Principle	Measures system pressure via input analog electrical signal
Performance	High Stability, High Accuracy

Wiring Diagrams & Installation

Please refer to the specific terminal markings on the back of your meter. Common connection methods include:

Type 1: Direct Ammeter - Direct Series Connection (Direct Load)
Type 2: Ammeter via CT - Connection via External Current Transformer
Type 3: Direct Voltmeter - Direct Parallel Connection
Type 4: Voltmeter via PT - Connection via Voltage Transformer

For inquiries regarding bulk orders or specific signal inputs (DC/AC), please contact us.
