3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter

Name: 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: M20968-3
Price: 22.00 USD
Availability: InStock

Brand Name:	Imhoo
Model Number:	M20968-3
MOQ:	5 pieces
Price:	$20-25 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Features:

High Temperature Resistance

Accuracy Class:

1.5~2.5

Display Type:

Analog And Digital

Supply Voltage:

300V

Dimensions:

3.5''

Operating Temperature:

0 To 40℃

Measuring Range:

DC1200A/FS.DC50mV

Function:

Panel Meter Ammeter

Model Size:

3.5''

Full Scale Deflection Angle:

90°

Operating Humidity Range:

25 To 80%RH

Storage Temperature Range:

-10~+50℃

Storage Humidity Range:

25 To 80%RH

OEM&ODM:

Support

Certificate:

CE ROHS

Sample Time:

7 Days

Highlight:

3.5'' Analog Panel Meter

1200A Analog Panel Meter

Digital analog panel amp meter

Product Description

Professional 1200A DC Analog Panel Meter Ammeter

High-precision DC analog panel meter designed for industrial applications with robust construction and reliable performance.

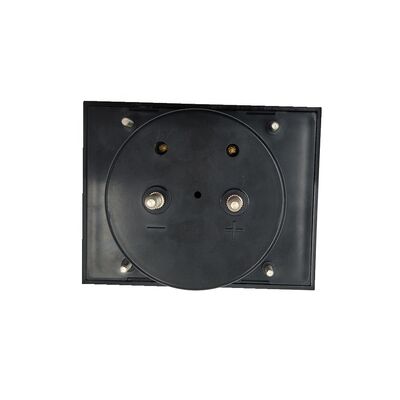

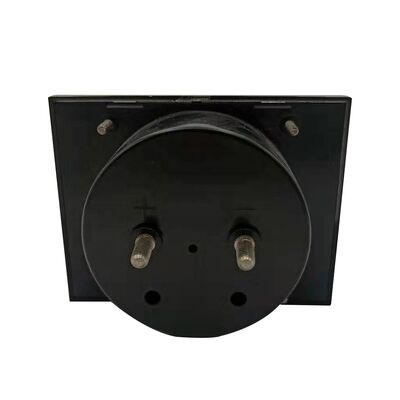

Product Images

Technical Specifications

Model	M20968-3
Model Size	3.5''
Range	DC1200A/FS.DC50mV
Full Scale Deflection Angle	90°
Withstand Voltage	50Hz, 2000V for one minute
Operating Temperature Range	0 to 40℃
Case Material	Base Material: ABS (environmental protection) Front Cover Material: Acrylic resin
Payment Methods	L/C, D/A, D/P, T/T, MoneyGram

Safety Requirements & Compliance

Structural requirements comply with GB/T7676-98 and IEC60092-50 standards for voltage test safety and insulation
Reinforced insulation between electrical circuit and case
Designed for indoor use at altitudes up to 2000m, Pollution degree 2
Measurement category III (not applied for non-JIS products)
Maximum working voltage: 300V for DC meters, AC meters (Mean rectifier type), Wattmeters, Varmeters, Power factor meters and Frequency meters
Maximum working voltage: 600V for AC meters (Moving iron type)

Installation Dimensions
