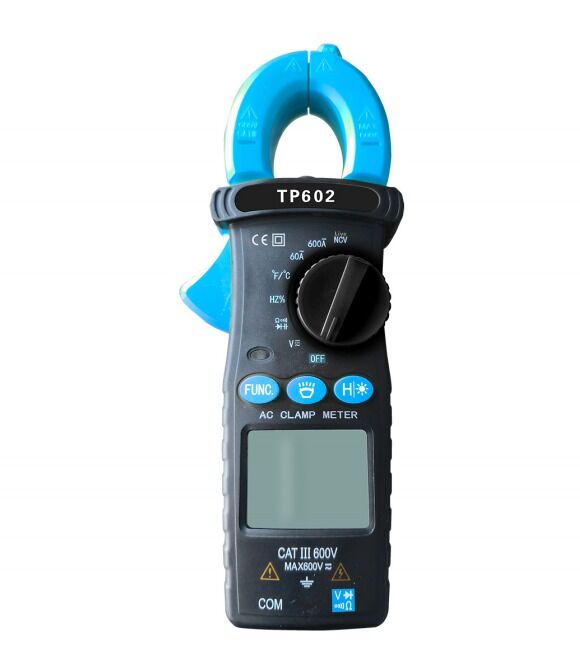

IMHOO TP602 Resistance Multimeter Clamp Meter AC DC Current Hvac

Name: IMHOO TP602 Resistance Multimeter Clamp Meter AC DC Current Hvac
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: TP602
Price: 13.50 USD
Availability: InStock

Brand Name:	IMHOO
Model Number:	TP602
MOQ:	5 pieces
Price:	$12.50-15.86 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Clamp Opening Size:

40MM, Φ46 Mm, Φ34 Mm, Φ48 Mm

Max. Ac Current:

0.00mA~300.0A

Max. DC Current:

600 A

Measuring Voltage Range:

Dimensions:

180mm*72mm*32mm

Display Type:

Analog And Digital

Instrument Safety Rating:

CAT III 600V

Measuring Capacitance Range:

Measuring Current Range:

0.00mA~300.A

Measuring Inductance Range:

Measuring Resistance Range:

Operating Temperature:

-10°C~40°C

Parameters Measured:

Measurement Of AC Leakage Current, AC Current

Weight:

0.31kg

Highlight:

40mm Clamp Multimeter

46mm Clamp Multimeter

34mm clamp style multimeter

Product Description

IMHOO TP602 Resistance Multimeter Clamp Meter AC DC Current HVAC

Universal Pioneer - Digital Clamp Gauge (TP Series)

The most comprehensive "Swiss Army Knife" in terms of functionality for electrical professionals.

Core Advantages

From basic voltage, current, and resistance measurements to precise diagnosis of capacitance, frequency, and temperature, the TP series handles any electrical testing scenario. Equipped with live wire detection, backlit flashlight, and high-resolution display with up to 6000 counts for safe operation in dim or complex environments.

Target Audience

Frontline electricians, HVAC technicians, and versatile maintenance engineers who require one machine for multiple purposes across various scenarios.

Multi-Functional Strength - AC/DC Digital Clamp Multimeter (QF-801 Series)

Focused on core performance with strong capabilities for professional applications.

Core Advantage

Specifically designed for users handling both AC and DC circuits simultaneously. Provides precise current and voltage measurements with frequency and duty cycle analysis functions, making it ideal for diagnosing frequency conversion equipment and control signals.

Target Audience

Professional and technical personnel in industrial automation, equipment maintenance, new energy, and power systems.

Intelligent Efficiency - Smart Digital Clamp Multimeter (QF-901 Series)

Intelligent recognition simplifies complex measurement tasks.

Core Advantage

Eliminates manual range selection with automatic object recognition for voltage, resistance, and continuity testing. Integrates powerful functions into simple operations for unprecedented ease of use.

Target Audience

Professionals pursuing ultimate efficiency, as well as beginners and enthusiasts seeking quick setup and safe operation.

Key Product Features

High precision measurement: True RMS measurement with up to 6000 counts for accurate readings in non-sinusoidal waveforms
Safety first: NCV non-contact voltage sensing detects live wires without contact for personal safety
Fearless of darkness: High brightness backlit screen with integrated flashlight for clear reading in low light areas
Multi-functional: Integrated diode testing, continuity buzzer, temperature measurement (some models) - one tool solves multiple problems

Model Comparison Specifications

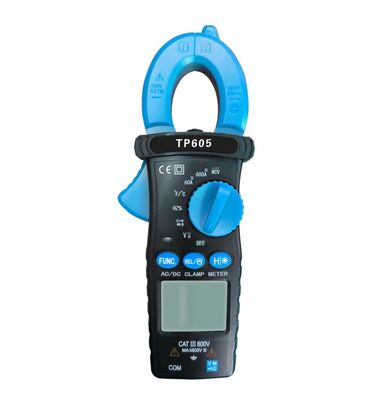

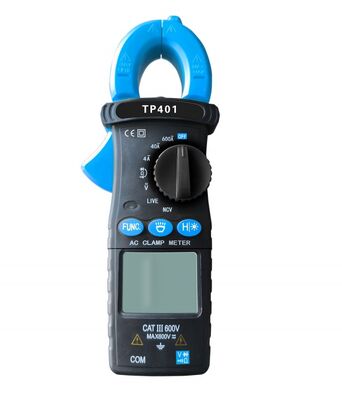

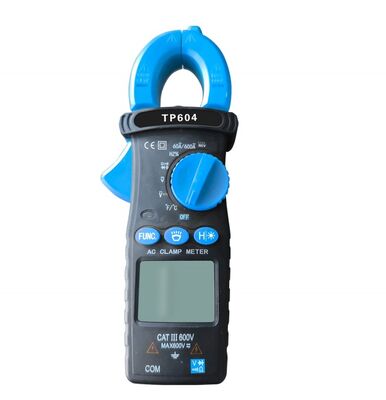

Feature / Model	TP401	TP602	TP604	TP605	QF-801A	QF-801B	QF-901A	QF-901B
Primary Measurements
DC Voltage (DCV)	✓	✓	✓	✓	✓	✓	✓	✓
AC Voltage (ACV)	✓	✓	✓	✓	✓	✓	✓	✓
AC Current (AC A)	✓	✓	✓	✓	✓	✓	✓	✓
Resistance	✓	✓	✓	✓	✗	✗	✗	✗
Capacitance	✓	✓	✓	✓	✓	✓	✓	✓
Diagnostic Functions
Temperature	✓	✓	✓	✓	✓	✓	✓	✓
Frequency	✓	✓	✓	✓	✓	✓	✓	✓
Duty Ratio	✗	✗	✗	✗	✓	✓	✓	✓
Diode Test	✓	✓	✓	✓	✓	✓	✓	✓
Buzzer (Continuity)	✓	✓	✓	✓	✓	✓	✓	✓
Safety & Utility
Live Wire Detection	✓	✓	✓	✓	✗	✗	✗	✗
NCV (Non-Contact Volt.)	✓	✓	✓	✓	✗	✗	✗	✗
RMS (True RMS)	✓	✓	✓	✓	✗	✗	✗	✗
Backlight	✓	✓	✓	✓	✗	✗	✗	✗
Flashlight	✓	✓	✓	✓	✗	✗	✗	✗
Low Voltage Indication	✓	✓	✓	✓	✓	✓	✓	✓
Specifications
Counts	4000	6000	6000	6000	6000	6000	6000	6000
Special Feature	-	-	-	-	-	-	Smart*	Smart*

Notes: ✓ = Feature available | ✗ = Feature not available | *Smart Feature: QF-901 series includes auto-ranging and automatic function identification

Product Images

Frequently Asked Questions

Q: Can you accept OEM manufacturing?

A: Yes. We can create molds for meter housings and provide customized technology according to your requirements. We can also apply your branding and design for packaging (inner box, blister, master carton).

Q: Where can I place my logo?

A: We can print your logo on the meter dial, meter housing, blister card, inner box, and master carton.

Q: What are your minimum order quantities?

A: Analog display meters MOQ: 100 pieces | Digital display meters MOQ: 1000 pieces

Q: How can I get samples?

A: Samples costing below $10.00 are free, but customers must pay the freight cost.

Q: What are your payment terms?

A: 1) T/T (30% in advance, balance paid before shipment). 2) For orders less than USD 5000, we require 100% payment in advance to save on bank transfer costs for both parties.

Q: How long is the delivery time?

A: For minimum order quantities, the lead time is approximately 15 days.
