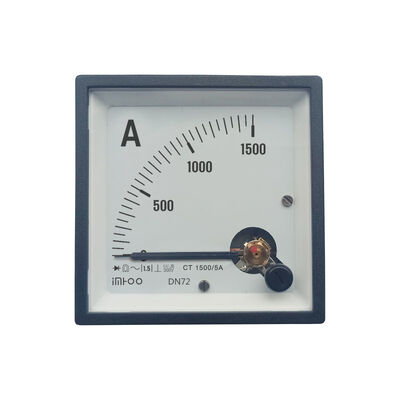

| Brand Name: | Imhoo |
| Model Number: | TP-72 |
| MOQ: | 5 pieces |
| Price: | $5.39-8.30 / piece |
| Type | AC A Ranges | DC A Ranges |
|---|---|---|
| mA | 100mA, 150mA, 200mA, 400mA, 500mA | 100mA, 150mA, 200mA, 400mA, 500mA |
| A | 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A | 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A |
| with external CT (ACA) | X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A |
50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A |
| Type | AC V Ranges | DC V Ranges |
|---|---|---|
| V | 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V | 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V |

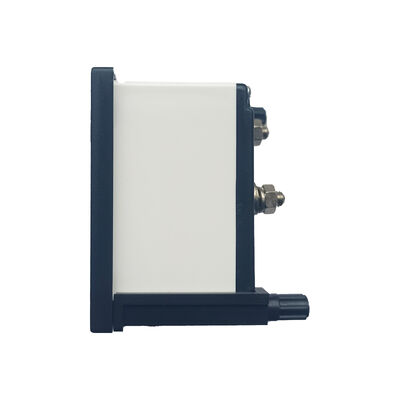

| Model | Case Dimension A | Case Dimension B | Case Dimension C | Case Dimension D | Panel Cutout E | Panel Cutout F |
|---|---|---|---|---|---|---|
| TP-96 | 96.5 | 96.5 | 69.4 | 64 | 91 | 91 |
| TP-72 | 71.8 | 71.8 | 69.4 | 64 | 67.5 | 67.5 |
| TP-48 | 48.3 | 48.3 | 69.4 | 64 | 44.2 | 44.2 |
