600A Clamp Multimeter With CAT III 600V Safety Rating And Analog Digital Display

Name: 600A Clamp Multimeter With CAT III 600V Safety Rating And Analog Digital Display
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: TP605
Price: 13.50 USD
Availability: InStock

Brand Name:	IMHOO
Model Number:	TP605
MOQ:	100 pieces
Price:	$12.50-15.86 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Clamp Opening Size:

40MM, Φ46 Mm, Φ34 Mm, Φ48 Mm

Max. Ac Current:

0.00mA~300.0A

Max. DC Current:

600 A

Measuring Voltage Range:

Dimensions:

180mm*72mm*32mm

Display Type:

Analog And Digital

Instrument Safety Rating:

CAT III 600V

Measuring Capacitance Range:

Measuring Current Range:

0.00mA~300.A

Measuring Inductance Range:

Measuring Resistance Range:

Operating Temperature:

-10°C~40°C

Parameters Measured:

Measurement Of AC Leakage Current, AC Current

Weight:

0.31kg

Highlight:

600A Clamp Multimeter

CAT III Clamp Multimeter

600V clamp digital meter

Product Description

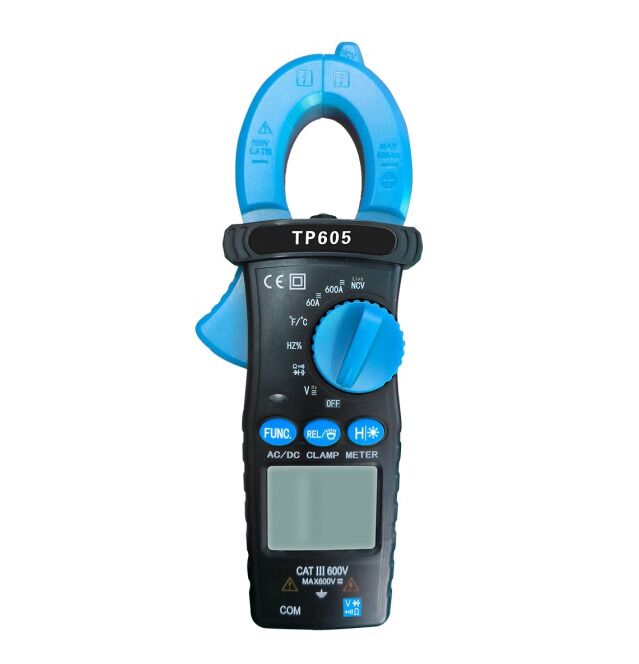

IMHOO TP605 Clamp Meter with CAT III 600V Safety Rating

Universal Pioneer - Digital Clamp Gauge (TP Series)

The most comprehensive "Swiss Army Knife" in terms of functionality for professional electrical work.

Core Advantages

Complete measurement capabilities from basic voltage, current, and resistance to precise diagnosis of capacitance, frequency, and temperature
Live Wire detection for enhanced safety
Integrated backlit flashlight for low-light environments
High-resolution display with up to 6000 counts for accurate readings

Target Audience

Frontline electricians, HVAC technicians, and versatile maintenance engineers who require one machine for multiple purposes across various scenarios.

Product Series Comparison

Feature / Model	TP401	TP602	TP604	TP605	QF-801A	QF-801B	QF-901A	QF-901B
Primary Measurements
DC Voltage (DCV)	✓	✓	✓	✓	✓	✓	✓	✓
AC Voltage (ACV)	✓	✓	✓	✓	✓	✓	✓	✓
AC Current (AC A)	✓	✓	✓	✓	✓	✓	✓	✓
Resistance	✓	✓	✓	✓	✗	✗	✗	✗
Capacitance	✓	✓	✓	✓	✓	✓	✓	✓
Diagnostic Functions
Temperature	✓	✓	✓	✓	✓	✓	✓	✓
Frequency	✓	✓	✓	✓	✓	✓	✓	✓
Duty Ratio	✗	✗	✗	✗	✓	✓	✓	✓
Diode Test	✓	✓	✓	✓	✓	✓	✓	✓
Buzzer (Continuity)	✓	✓	✓	✓	✓	✓	✓	✓
Safety & Utility
Live Wire Detection	✓	✓	✓	✓	✗	✗	✗	✗
NCV (Non-Contact Volt.)	✓	✓	✓	✓	✗	✗	✗	✗
RMS (True RMS)	✓	✓	✓	✓	✗	✗	✗	✗
Backlight	✓	✓	✓	✓	✗	✗	✗	✗
Flashlight	✓	✓	✓	✓	✗	✗	✗	✗
Low Voltage Indication	✓	✓	✓	✓	✓	✓	✓	✓
Specifications
Counts	4000	6000	6000	6000	6000	6000	6000	6000
Special Feature	-	-	-	-	-	-	Smart*	Smart*

Notes: *Smart Feature: The QF-901 series is designated as "Intelligent," which typically implies auto-ranging or automatic function identification to simplify operation.

Key Product Features

✅ High precision measurement: True RMS measurement and up to 6000 counts for accurate readings even in non-sinusoidal waveforms
✅ Safety first: NCV non-contact voltage sensing function detects live wires without contact
✅ Fearless of darkness: High brightness backlit screen and integrated flashlight for low-light areas
✅ One machine with multiple functions: Integrated diode testing, on/off buzzer, temperature measurement, and more

Frequently Asked Questions

Q: Can you accept OEM manufacturing?

A: Yes. We can make molds for meters' housing and do customized technology according to your request. We also can make your brand and design of the package (inner box, blister, master carton...)

Q: Where can I put my logo?

A: We can print your logo in the meters' dial, meters' housing, blister card, inner box and master carton.

Q: What are your MOQ?

A: Analog display meters MOQ: 100pcs. Digital display meters MOQ: 1000pcs.

Q: How can I get Samples?

A: If the samples cost below $10.00 are for free, but we need the customer pay the freight cost.

Q: What are your terms of payment?

A: 1) T/T (30% in advance, the balance should be paid before shipment). 2) For small order less than USD 5000, in order to saving the bank transfer for both of us, we need 100% in advance.

Q: How long is the delivery time?

A: For the MOQ, the leading time is about 15 days.
