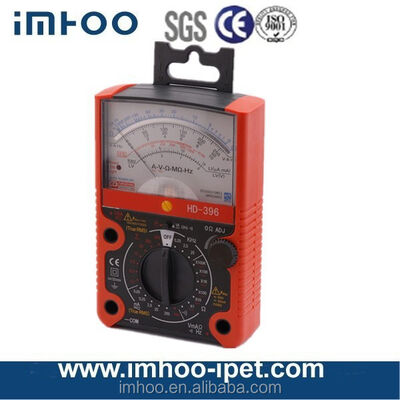

0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V

Name: 0.05-250mA 10A Measuring Current Range Analog Multimeter 0.1-500V
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: HD-396
Price: 32.00 USD
Availability: InStock

Brand Name:	imhoo
Model Number:	HD-396
MOQ:	1 piece
Price:	$29-35 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Measuring Current Range:

0.05-250mA,10A

Measuring Voltage Range:

0.1-500v

Dimensions:

160*105*40mm

Measuring Capacitance Range:

Null

Measuring Inductance Range:

Null

Measuring Resistance Range:

Null

Operating Temperature:

0-40℃

Color:

Red

Transistor Test:

Yes

Continuity Buzzer Test:

Yes

Decibel Test:

Yes

Style:

Fashion

Packing:

Box

Working Function:

11 Kinds

Various Test Range:

Yes

Highlight:

10A Analog Multimeter

250mA Analog Multimeter

500V multimeter tester analog

Product Description

Low Price Analog Multimeter Made in China

High-quality analog multimeter manufactured in China with comprehensive testing capabilities and robust protection features.

Key Features

High-quality taut-band movement with perfect linearity
25 test ranges across 11 working functions
Comprehensive overload protection with high-voltage fuses (0.5A/500V & 10A/500V)
Compact protective holster included
Wide testing scope for current, voltage, and resistance measurements
Auto power-off after 15 minutes with restore function
Adjustable back tilt stand with hook-up design
Continuity test with audible buzzer
Leakage current and diode testing capabilities
Transistor testing via test leads
Over-voltage protection: CAT III 500V, CAT II 1000V

Technical Specifications

Measurement Type	Range	Accuracy
True RMS AC Voltage	0.1/0.5/2.5/10/50/250/500V	±4.0% F.S.
True RMS AC Current	0.05/0.25/2.5/25/250mA, 10A	±4.0% F.S.
DC Voltage	0.1/0.5/2.5/10/50/250/500V	±3.0% F.S.
DC Current	0.05/0.25/2.5/25/250mA, 10A	±3.0% F.S.
Resistance	X1, X10, X100, X1K, X10K, X100K	±3.0% of Arc
Frequency Test	0.25K/2.5K/25K Hz	-
Decibels Test	-20~+62dB via test leads	-

Physical Specifications

Dimensions: 160 × 105 × 40mm

Weight: Approximately 470g

Power Supply: 6F22 9V (1pc), AA size 1.5V (2pcs)

Input Impedance: 20KΩ at all ACV & DCV ranges

Product Images

Packaging Information

Packing Type	White Box
Carton Size	53 × 38 × 32cm
Standard Packing per Carton	32pcs
Net Weight	18kg
Gross Weight	19kg

Our Services

High quality products at competitive prices
Reliable delivery commitments - we deliver on time as promised
Quality assurance - we replenish any quality issues after customer receipt
OEM services available
Custom product research and development based on customer requirements
