MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection

Name: MF47 Internal Magnetic Pointer Multimeter Mechanical High Precision Fire Protection
Brand: Wuxi Imhoo Technology Co., Ltd.
SKU: HD-390C
Price: 9.20 USD
Availability: InStock

Brand Name:	imhoo
Model Number:	HD-390C
MOQ:	1 piece
Price:	$8.20-11.60 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Measuring Current Range:

0.1-250mA

Measuring Voltage Range:

0.25-1000v

Dimensions:

160*105*40mm

Measuring Capacitance Range:

Measuring Inductance Range:

Measuring Resistance Range:

0.1Ω-20MΩ

Operating Temperature:

0-40℃

Color:

Red,blue

Transistor Test:

Yes

Continuity Buzzer Test:

Yes

Decibel Test:

Yes

Highlight:

MF47 pointer multimeter

Fire Protection pointer multimeter

High Precision digital analog meter

Product Description

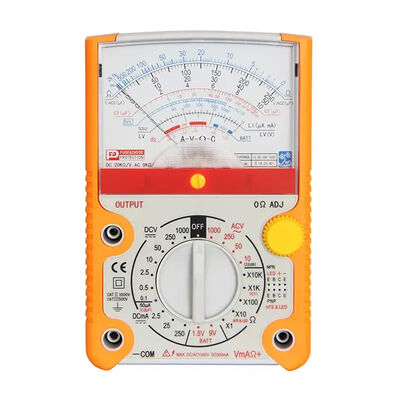

MF47 Internal Magnetic Pointer Type Multimeter

Professional mechanical analog multimeter with high precision and fire protection features for accurate electrical measurements.

Key Features & Specifications

22 test ranges across 8 working functions
Heavy ABS plastic housing with compact protective holster
Adjustable back tilt stand with hook-up design
High input impedance: 10KΩ/V DCV and 4.5 KΩ/V ACV
Advanced overload protection with fast-acting 0.5A/250V fuse
DC voltage range (±3.0% F.S.): 0.25/2.5/10/50/250/1000V
AC voltage range (±4.0% F.S.): 10/50/250/1000V
DC current range (±3.0% F.S.): 0.1/2.5/25/250mA, 10A (±4.0% F.S.) without 10A fuse
Resistance range (0.1Ω~20MΩ, ±3.0% of Arc.): x1, x10, x100, x1K, x10K
Dry battery check: 1.5V, 9V
Continuity buzzer testing
Transistor hFE check via front jack
Decibel test: -20~+62dB with external 0.047uF/400V polyester capacitor
Dimensions: 160×105×40mm, Weight: 320g approx.
Power supply: 6F22 9V dry battery (1pc) and AA size 1.5V battery (1pc)

Packaging Information

Packing Type	White Box
Carton Size	53×38×32cm
Standard Packing per Carton	32pcs
Net Weight	18kg
Gross Weight	19kg
