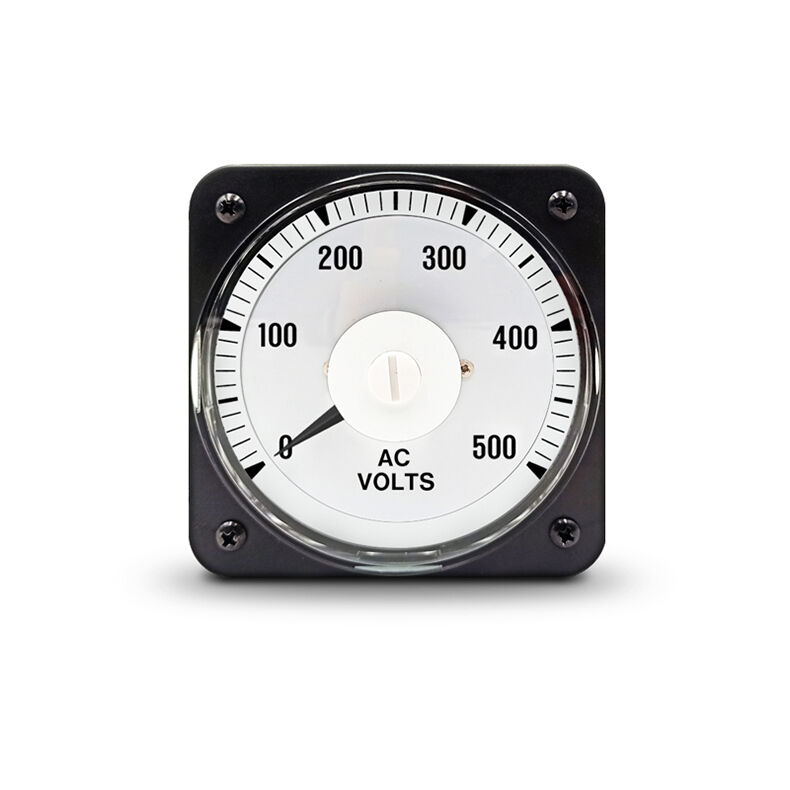

Ymiho Wide-angle Panel Meter wide-angle AC voltmeter AC500V

Name: Ymiho Wide-angle Panel Meter wide-angle AC voltmeter AC500V
Brand: Wuxi Imhoo Technology Co., Ltd.
Availability: InStock

Detail Information

Product Description

Detail Information

Highlight:

wide-angle panel meter AC500V

AC voltmeter panel meter

wide-angle AC voltmeter with warranty

Product Description

Ymiho Wide-angle Panel Meter - AC500V AC Voltmeter

This wide-angle AC voltmeter is engineered for demanding marine, power station, and industrial environments. Featuring a robust square metal casing with transparent protective cover, it ensures stable operation in harsh conditions including oil mist, salt spray, and vibration.

Enhanced Visibility & Safety

The 240° wide-angle dial, paired with a high-contrast pointer, delivers clear and intuitive readings from multiple viewing angles, significantly enhancing operational safety in critical applications.

Key Performance Features

Measures AC voltage with accuracy class of 1.5
Supports 50/60Hz standard frequencies
Selectable ranges: 0-500V and 0-750V (custom ranges available)

Robust Construction

All-metal housing with sealed terminal design
IP42 ingress protection rating
Shock and vibration resistant construction
Operating temperature range: -25°C to +55°C

Easy Installation

Standard 110×110mm panel cutout with rear bolt mounting and gold-plated terminals. Compatible with a wide range of marine switchboards and control panels for straightforward integration.

Technical Specifications

Product Type	Wide-angle analog AC voltmeter
Measuring Range	0-500V AC / 0-750V AC (other ranges available on request)
Accuracy Class	Class 1.5
Frequency Range	50/60 Hz
Dial Angle	240° wide-angle scale
Ingress Protection	IP42
Operating Temperature	-25℃ ~ +55℃
Housing Material	Metal casing with transparent protective cover
Mounting Type	Panel mount
Panel Cutout	101 × 101 mm
Overall Dimensions	110 × 110 × 101 mm (L×W×D)
Terminal Type	Gold-plated terminals

Applications

Widely used in main switchboards, emergency power systems, mobile power stations, petrochemical equipment, and industrial control systems to ensure accurate and reliable voltage monitoring in critical power systems.

Product Images
