| Brand Name: | IMHOO |

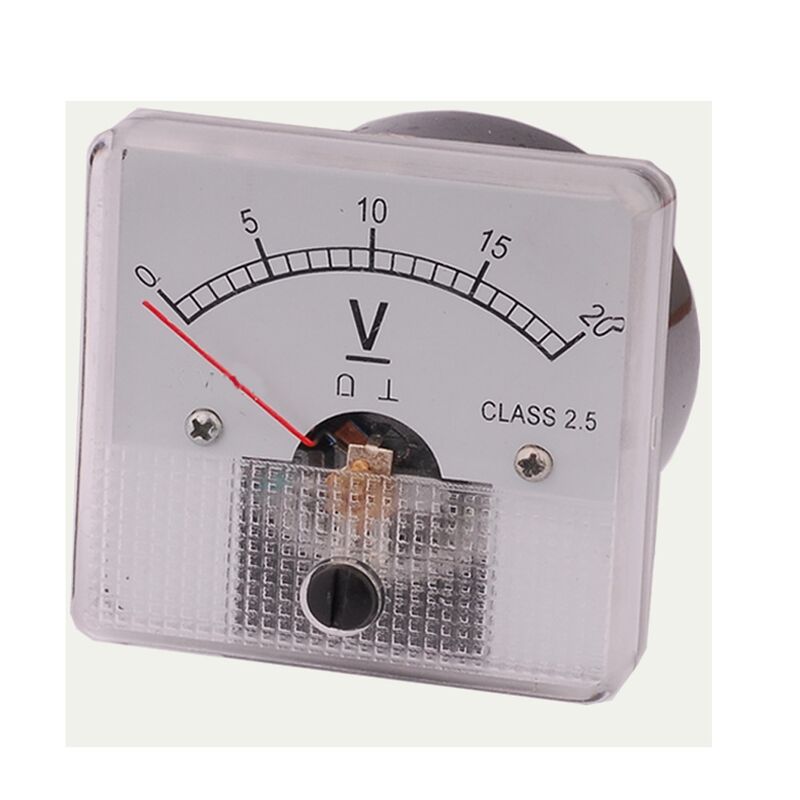

| Model Number: | TP-60 ACV |
| MOQ: | 1 piece |
| Price: | $2.90-4.60 / piece |
| Type | AC Ranges | DC Ranges |
|---|---|---|
| Microamps (μA) | 50μA, 100μA, 150μA, 500μA | 50μA, 100μA, 150μA, 500μA |
| Milliamps (mA) | 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA | 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA |
| Amps (A) | 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A | 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A |
| With External CT (ACA) | X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A |
50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A |
| Type | AC Voltage Ranges | DC Voltage Ranges |
|---|---|---|
| Volts (V) | 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V | 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V |
| Model | Case Dimension | Panel Cutout Dimension |
|---|---|---|
| TP-45 | 45.2 × 45.2 × 8.5 | ø38 |
| TP-50 | 51 × 51 × 13 | ø45.5 |
| TP-60 | 60 × 60 × 14 | ø51 |
| TP-80 | 81.3 × 81.3 × 16 | ø64 |
