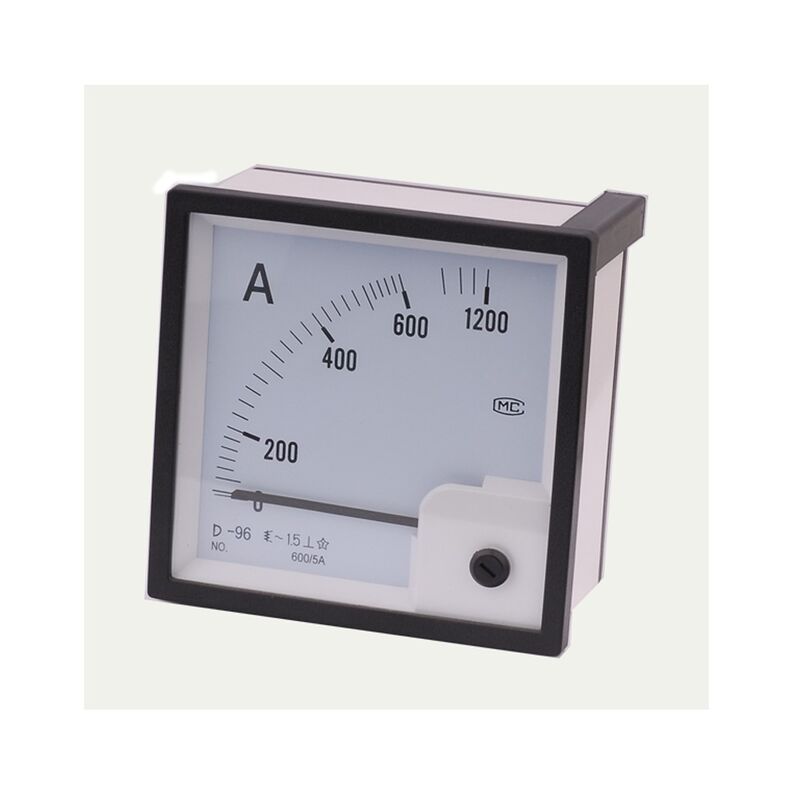

Analog Panel Meter 96x96 Moving Iron AC Ammeter

Brand Name:	Imhoo
Model Number:	TP-96 AC A
MOQ:	500 pieces
Price:	$2-5 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Accuracy Class:

2.0

Display Type:

Analog Only

Supply Voltage:

220/110V

Dimensions:

96x96mm

Operating Temperature:

-20-50℃

Measuring Range:

0-100A

HS Code:

9028309000

Case Material:

PC/PMM

Base Material:

ABS/PC/Bakelite

Meter Supporter:

Al, Ni,Co

Moving Coil:

Fuji Line

Pointer Material:

Cu/Al

Screw:

Inner Connection Line:

Line

Dial:

Al Scale

Soldering:

ROHS Solde Wire

Highlight:

96x96 analog panel ammeter

moving iron AC ammeter

analog panel meter with warranty

Product Description

Analog Panel Meter 96x96 Moving Iron AC Ammeter

High-quality analog panel meters available in 96mm, 72mm, and 48mm square configurations for precise current and voltage measurement applications.

Construction & Materials

Square Type series features non-combustible ABS plastic external cases with PPO plastic bases. Alternatively, non-combustible PC plastic material can be used for both external cases and bases. Both materials maintain structural integrity without deformation during long-term use at 70°C and 120°C respectively.

Customization Options

IMHOO offers OEM services with customizable ranges, changeable scales, waterproof configurations, and other specialized requirements.

Ammeter Specifications

Type	AC Ranges	DC Ranges
mA	100mA, 150mA, 200mA, 400mA, 500mA	100mA, 150mA, 200mA, 400mA, 500mA
A	1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A	1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A
With External CT (ACA)	X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A	50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A

Voltmeter Specifications

AC Voltage Ranges	DC Voltage Ranges
10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V	10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V

Dimensions (millimeters)

Model	Case Dimension (A)	Case Dimension (B)	Depth (C)	Depth (D)	Panel Cutout (E)	Panel Cutout (F)
TP-96	96.5	96.5	69.4	64	91	91
TP-72	71.8	71.8	69.4	64	67.5	67.5
TP-48	48.3	48.3	69.4	64	44.2	44.2

Packaging & Shipping

Our Services

High Quality, Competitive Pricing
Integrity and On-Time Delivery Commitment
Quality Assurance and Replacement Policy
OEM Manufacturing Services
Custom Research and Development

Frequently Asked Questions

Are you a factory or trading company?

We are a factory.

Where is your factory located? How can I visit there?

Our factory is located in Wuxi City, Jiangsu Province, China, approximately 1 hour by train from Shanghai. All clients, domestic and international, are warmly welcome to visit us.

How can I get some samples?

We are honored to offer you samples for evaluation.

How does your factory handle quality control?

Quality is our priority. IMHOO maintains rigorous quality control processes from initial production through final inspection to ensure product excellence.
