| Brand Name: | imhoo |

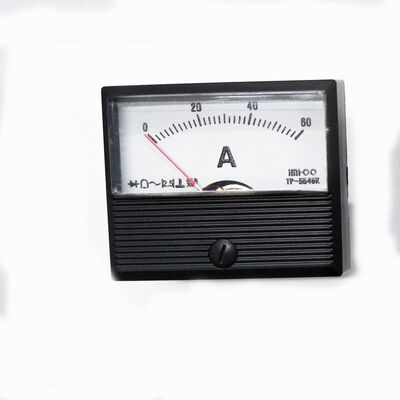

| Model Number: | TP-5546K |
| MOQ: | 5 pieces |
| Price: | $10.20-13.80 / piece |
| Type | Model | Suspension Type | Operating Principle | Accuracy | OEM Ranges |
|---|---|---|---|---|---|
| DC Ammeter Voltmeter | 2071-2073, 2074A-2076A, 2093A, 2094A | Taut Band | Moving coil | 2.5 (2076A, 2086A: 1.5) | 10uA-30A, 50uA-30A |
| 2081-2083, 2084A-2086A | Pivot & jewel | Moving coil | 2.5 | 50uA-30A | |
| AC Ammeter Voltmeter | 2081-2083, 2084A-2086A | Taut Band | Mean Rectifier | 2.5 | 200uA-20mA, 3-300V, 40-50Hz-300-500Hz |
| 2081-2083, 2084A-2086A | Pivot & jewel | Mean Rectifier | 2.5 | 200uA-20mA, 3-300V, 40-50Hz-300-500Hz | |
| 2081-2083, 2084A-2086A | Pivot & jewel | Moving Iron | 2.5 (2086A: 1.5) | 50mA-30A, 10-600V, 40-50Hz-300-500Hz | |
| Frequency Meter | 2074A-2076A, 2093A, 2094A | Taut Band/Pivot & jewel | Root mean square | 2.5 (2086A: 1.5) | 100-230V, 40-50Hz-300-500Hz |
| Model | Flattened Needle (Black) | Round Needle (Red) |
|---|---|---|
| 2071, 2081 | 29 | 29 |
| 2072, 2082 | 34 | 34 |
| 2073, 2083 | 47.5 | 47.5 |
| 2074A, 2084A | 63.5 | 62 |
| 2075A, 2085A | 80.5 | 79 |
| 2076A, 2086A | 103 | 101 |
| 2093A | 47.5 | 47.5 |
| 2094A | 63.5 | 62 |
| Model | Panel Size |
|---|---|
| 2071, 2081 | 42×50 |
| 2072, 2082 | 46×55 |
| 2073, 2083 | 56×67 |
| 2074A, 2084A | 67×80 |
| 2075A, 2085A | 83×100 |
| 2076A, 2086A | 100×120 |
| 2093A | 60×60 |
| 2094A | 80×80 |
