| Brand Name: | imhoo |

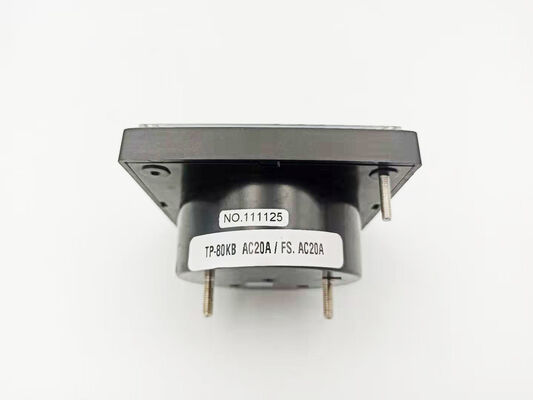

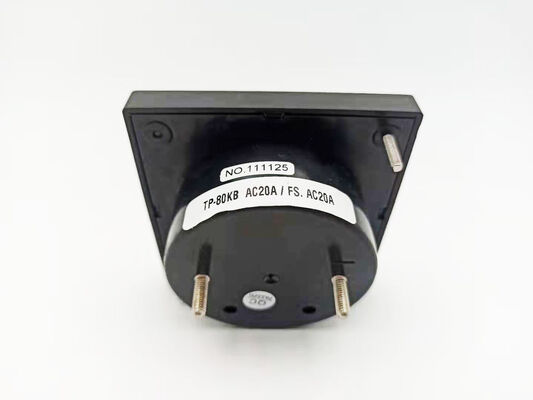

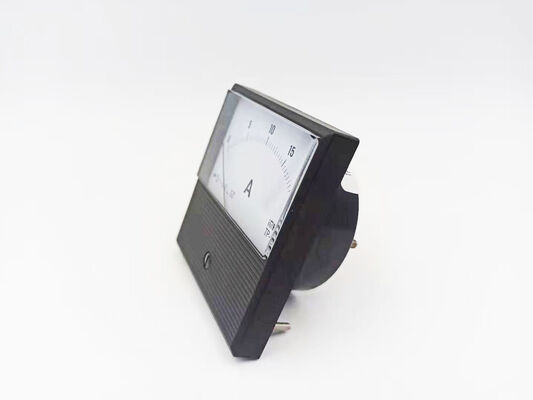

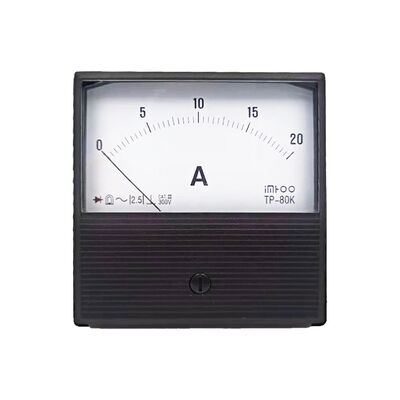

| Model Number: | TP-80K |
| MOQ: | 5 pieces |
| Price: | $10.60-14.60 / piece |
| Type | Model | Suspension Type | Operating Principle | Accuracy | DC Ranges | AC Ranges | Frequency Ranges |
|---|---|---|---|---|---|---|---|
| DC Ammeter/Voltmeter | 2071-2073, 2074A-2076A, 2093A,2094A | Taut Band | Moving coil | 2.5 (2076A,2086A:1.5) | 10uA-30A | 50uA-30A | / |
| 2081-2083, 2084A-2086A | Pivot & jewel | Moving coil | 2.5 | 50uA-30A | |||
| 2093A,2094A | |||||||
| AC Ammeter/Voltmeter | 2081-2083, 2084A-2086A | Taut Band | Mean Rectifier | 2.5 | 200uA-20mA | 3-300V | 40-50Hz-300-500Hz |
| 2081-2083, 2084A-2086A | Pivot & jewel | Mean Rectifier | 2.5 | ||||
| 2093A,2094A | |||||||
| AC Moving Iron | 2081-2083, 2084A-2086A | Pivot & jewel | Moving Iron | 2.5 (2086A:1.5) | 50mA-30A | 10-600V | 40-50Hz-300-500Hz |
| 2093A,2094A | |||||||
| Frequency Meter | 2074A-2076A, 2093A,2094A | Taut Band | Root mean square | 2.5 (2086A:1.5) | / | 100-230V | 40-50Hz-300-500Hz |
| 2093A,2094A | Pivot & jewel | Root mean square | 2.5 (2086A:1.5) | / | 100-230V | 40-50Hz-300-500Hz |
| Model | Flattened Needle (Black) | Round Needle (Red) |
|---|---|---|
| 2071,2081 | 29 | 29 |
| 2072,2082 | 34 | 34 |
| 2073,2083 | 47.5 | 47.5 |
| 2074A,2084A | 63.5 | 62 |
| 2075A,2085A | 80.5 | 79 |
| 2076A,2086A | 103 | 101 |
| 2093A | 47.5 | 47.5 |
| 2094A | 63.5 | 62 |
| Model | Panel Size (mm) |
|---|---|
| 2071,2081 | 42×50 |
| 2072,2082 | 46×55 |
| 2073,2083 | 56×67 |
| 2074A,2084A | 67×80 |
| 2075A,2085A | 83×100 |
| 2076A,2086A | 100×120 |
| 2093A | 60×60 |
| 2094A | 80×80 |
