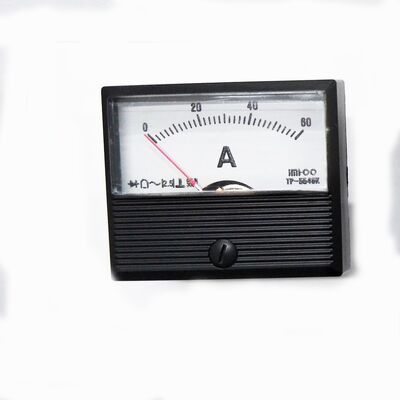

| Brand Name: | imhoo |
| Model Number: | TP-5546K |
| MOQ: | 5 pieces |
| Price: | $10.60-13.80 / piece |
| Name | Model | Suspension type | Operating principle | Accuracy | OEM Ranges | Current | Voltage | Frequency |
|---|---|---|---|---|---|---|---|---|
| DC Ammeter Voltmeter | 2071-2073 2074A-2076A 2093A,2094A |
10 | Taut Band | Moving coil | 2.5(2076A,2086A:1.5) | 10uA-30A | 50uA-30A | / |
| 2081-2083 2084A-2086A |
10 | Pivot&jewel | 50uA-30A | |||||
| 2093A,2094A | 17 | |||||||
| AC Ammeter Voltmeter | 2081-2083 2084A-2086A |
20 | Taut Band | Mean Recitfier | 2.5 | 200uA-20mA | 3-300V | 40-50HZ-300-500HZ |
| 2081-2083 2084A-2086A |
20 | Pivot&jewel | ||||||
| 2093A,2094A | 27 | |||||||
| 2081-2083 2084A-2086A |
30 | Pivot&jewel | Moving Iron | 2.5(2086A:1.5) | 50mA-30A | 10-600V | 40-50HZ-300-500HZ | |
| Frequency meter | 2074A-2076A 2093A,2094A |
80 | Taut Band | Root mean square plant accordingly | 2.5(2086A:1.5) | / | 100-230V | 40-50HZ-300-500HZ |
| 2093A,2094A | 87 | Pivot&jewel |
| Model | Flattened needle(black) | Round needle(red) |
|---|---|---|
| 2071,2081 | 29 | 29 |
| 2072,2082 | 34 | 34 |
| 2073,2083 | 47.5 | 47.5 |
| 2074A,2084A | 63.5 | 62 |
| 2075A,2085A | 80.5 | 79 |
| 2076A,2086A | 103 | 101 |
| 2093A | 47.5 | 47.5 |
| 2094A | 63.5 | 62 |
| Model | Panel Size |
|---|---|
| 2071,2081 | 42X50 |
| 2072,2082 | 46X55 |
| 2073,2083 | 56X67 |
| 2074A,2084A | 67X80 |
| 2075A,2085A | 83X100 |
| 2076A,2086A | 100X120 |
| 2093A | 60X60 |
| 2094A | 80X80 |
