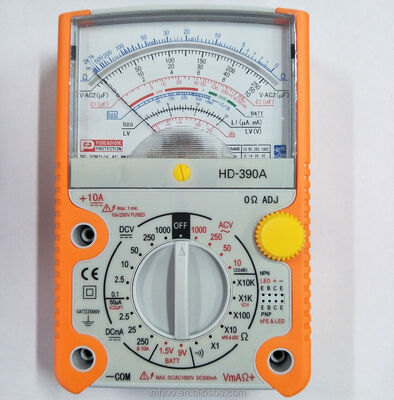

| Brand Name: | IMHOO |
| Model Number: | 390 |
| MOQ: | 1 piece |
| Price: | $8.50-10.30 / piece |
| Range | Measurement | Accuracy |
|---|---|---|
| AC Voltage | 10/50/250/1000V | ±4.0% F.S. |
| DC Voltage | 0.1/2.5/10/50/250/1000V | ±3.0% F.S. |
| DC Current | 0.05/2.5/25/250mA, 10A | ±3.0% F.S. |
| Resistance | X1, X10, X100, X1K(C1), X10K(0.2~20MΩ) | ±4.0% of Arc. |
| C1 | 100pF~0.025uF/2.5uF/25uF | ±3.0% F.S. |
| C2 | Large capacitors up to 2000uF direct testing | - |
| NULL | Center ±DCV 5V/25V Test | - |
| Input Impedance | DC 20 KΩ/V, AC 9 KΩ/V | - |
| Decibels Test | 20~ +62dB with external 0.047uF/400V capacitor | - |
| Battery Test | 1.5V, 9V | - |
| Dimensions | 158×105×40mm | - |
| Weight | 350g (approx.) | - |
| Power Supply | 6F22 9V battery (1pc), AA 1.5V batteries (2pcs) | - |
